Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: ZJLC
  • Model Number: LC-150W
  • Material: Monocrystalline Silicon
  • Size: choose by yourself
  • Number of Cells: 36
  • Max. Power: 300w
  • Name: 150w 24v mono solar panel with junction box
  • Warranty: 10 years
  • working life: 25 years
  • peak voltage: 17.6V
  • peak current: 8.19A
  • size of module: depands on you
  • maximum system voltage: 1000V(DC)
  • open-voltage: 21.7V
  • cell: 156MM
  • Certificates: CE,SGS,RoHS

Packaging & Delivery

Packaging Details one peace in one brown carton box
Delivery Time 10 days after the order confirmed

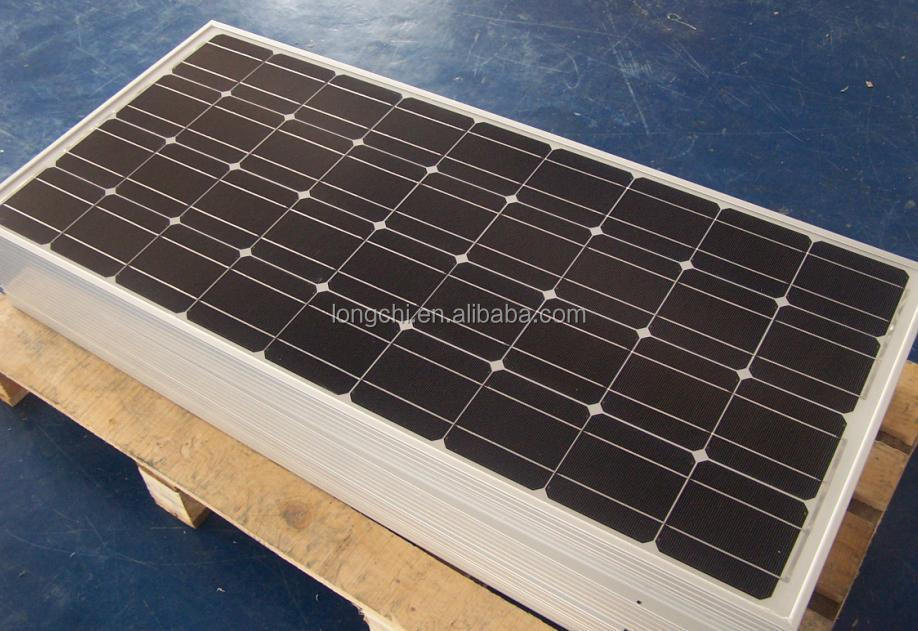

150w 24v mono solar panel with junction box

Product Description



Feature:



1).Description

Mono-crystalline solar panel and Poly-crystalline solar panel

High  efficiency  and  Long  lifetime

Suitable  for  on/off  grid  system  application

Module efficiency up to 17achieved through advanced

Cell technology and manufacturing capabilities

2).Tolerance

Guaranteed tolerance

Different model with different tolerance

3).Extended Wind and Snow

Load tests,Modula certified to wind and snow loads

4).Self-cleaning And Anti-reflective

Higher module efficiency from

Anti-reflective.hydrophobic layer with light absorption and Minimal surface dust

5).Lots of Models

Power between 2W to 300W,Can do OEM, and the size is optional.



Specification:

SpecificationVmp(V)Imp(A)Voc(V)Isc(A)L*W*H(mm)

Maximum system

voltage

Weight(kg)
290w/36v35.38.22458.431950*989*501000V24.5
280w/36v35.27.9544.88.331950*989*501000V24.5
270w/36v35.27.6744.58.21950*989*501000V24.5
260w/36v35.17.41448.091950*989*501000V24.5
250w/36v357.1443.87.871950*989*501000V24.5
240w/30v30.27.9536.48.41640*989*50/351000V21
230w/30v307.6736.28.241640*989*50/351000V21
220w/30v29.87.3835.18.041640*989*50/351000V21
210w/30v29.67.135.17.821640*989*50/351000V21
200w/27v26.57.5532.58.041480*989*50/351000V18.5
190w/27v267.3432.47.851480*989*50/351000V18.5
150w/18v17.68.1921.78.791640*666*351000V13.5
140w/18v17.67.9521.68.531640*666*351000V12.5
130w/18v17.57.4521.58.321640*666*351000V12.5
120w/18v17.36.9821.37.951640*666*351000V12.5
100w/18v17.35.7821.36.471068*666*35715V10
100w/18v17.35.7821.36.471480*540*35715V10
90w/18v17.55.121.65.61197*542*35715V8.6
80w/18v17.54.5721.65.11197*542*35715V8.6
70w/18v17.5421.64.26930*542*35715V7
65w/18v17.33.7621.54.16930*542*35715V7
60w/18v17.23.4921.33.86930*542*35715V7
50w/18v17.22.9121.33.4810*542*30715V5.5
40w/18v17.22.3221.42.57628*540*25715V4.6
35w/18v17.32.0221.52.33774*354*25715V3.5
30w/18v17.21.7521.62.01541*540*25715V3.5
25w/18v17.31.4521.71.68650*354*25715V3.2
20w/18v17.21.1621.81.35628*290*25715V3
15w/18v170.8821.91.01549*289*17715V2.5
12w/18v170.721.10.77549*289*17715V2.5
10w/18v170.5921.110.68389*349*17715V2

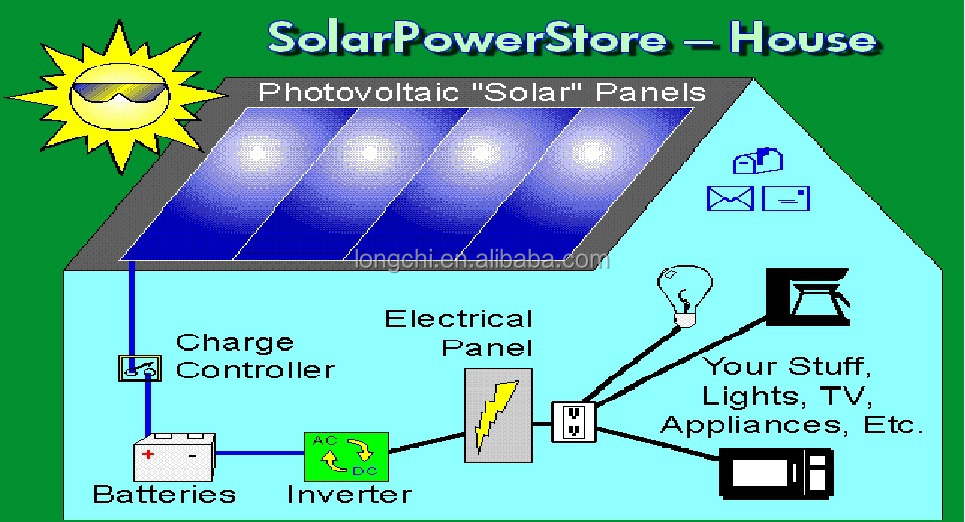

Working principle



Packaging & Shipping

Each one is packed in one brown carton case







Transportation:

The best and most cost-efficient way will be chosen!







Our Services

 24 hours online service

10 years guarantee.

CE,SGS,RoHS certificates





Company Information



Zhejiang Long Chi Technology Co., Ltd. , located in Huzhou, Zhejiang Province, is specialized  in manufacturing solar panels, solar systems. We have got CE,SGS and ROHS. The quality of our products can be guaranteed.

Our products sell well overseas, including Europe, South America, Africa and Mid-east, and receive high praise from customers.

Our Principle is to get win-win situation.





Why choose Longchi Solar :



A. Professional Manufacturers , Strict quality control & power classification Silicon Solar PV Module

B. 100% A grade solar cell with Positive tolerance power range.

C. High Conversion Efficiency , High transmission rate , low iron tempered Anti-reflecting/coating film 3.2mm glass

D. Anti-aging & high visosity EVA

E. high frame resistant & Double-sided fluorine TPT

F. Anodized aluminum alloy high thickness frame

G. 3 or 6 bypass diodes , 90mm 4m2 cable , MC4 connectors & waterproof junction box

H. Long life, Easy installation, high wind & hail impact resistance

I. Be resistant to atmospheric exposure & effects of delamination

J. ISO9001:2008/SGS/ROHs/

K. 10Years Manufacturing Quality Warranty , 10Years 90% Power output Warranty, 25Years 80% Power output Warranty By CHUBB Insurance

L. Paymet terms: We accept the O/A 90days payment terms by one touch or sinosure !







FAQ



 Are you manufacturer or trading company?



--- we are a manufacturer of solar panel, solar system and other solar modules.



• What kind of certification do you have?



--- We have already got CE,SGS,RoHS certifications.



 What is the warranty of solar panels?



--- 10-year warranty on material and workmanship,90% power output in 10 years,80% in 25 years



• How to get the best price?



---We need more information about your demands, such as the power/material/Qty/size, then We can



    suggest the suitable type and offer the best price.



 How can I know the quality?



---We are willing to provide you samples to test the quality. In addition, we also sincerely invite you to our company to evaluate the products, and give us more suggestions.



 Why do business with Longchi Technology?



A. As the manufacturer, we have professional technical persons, providing you the most professional technical support.



B. Competitive price will be provided.



C. We will spare no efforts to off the best service, answer your questions the first time.



D. Our delivery time is shorter and can be guaranteed.





Longchi Technology Co.,Ltd warmly welcome your enquiry. We will spare no efforts to assist you.
